Seamless Acrylic Tennis Court Surface Material Construction And Installation
It is new material for the sport surface. The structure is hard on top and elastic at bottom. It is One-component polyurethane, it is water-born material ,adding water and make it curing, it don't need any hardener. It is no smell ,both for indoor and outdoor. Install on the concrete directly.
The structure have buffer coat and top coat. Silicon PU is not only polyurethane mix with acrylic , or polyurethane with sand.with cushion effect.
1. BRIEF INTRODUCTION ABOUT JRACE
2. Our Advantage
- Smooth, flat surface provides true ball roll and bounce.
- Can be customized design
- Indoor or Outdoor applications
- Easy to install and using life is 10-15 years
- Custom developed to protect athletes with lateral buffering function
all weather and regional
| Technical Specification Of Permeable Running tracks in 13mm |
| Item | Characteristic | Unit | Test | Limit of acceptable |
| Aging Properties | Tensile Strength | Mpa | Before UV Irradiation | 0.56 |
| Elongation at Break | % | 51.7 |
| Tensile Strength | Mpa | After UV Irradiation | 0.54 |
| Elongation at Break | % | 48.8 |
| physical property | Force Reduction | % | GB/T 22517.6-2011, GB/T 14833-2011 | 36 |
| Vertical Deformation | mm | 1.3 |
| Skip Resistance | BPN20℃ | 53 |
| Tensile Strength | Mpa | 0.56 |
| Elongation at Break | % | 51.7 |
| Burning Diameter | mm | ≤37 |
| Rebound Data | % | GB/T14833-1993 | 24 |
| Compression recovery rate | % | 98 |
| Tensile Strength | Mpa | 0.9 |
| Elongation at Break | % | 61 |
| Flame Retardance | level | 1 |
| Limit of Harmful Substances | Benzene | mg/kg | GB/T 22517.6-2011,GB/T14833-2011 | Negative |
| Toluene and Xylene | mg/kg | Negative |
| TDI | mg/kg | Negative |
| Pb | mg/kg | 25 |
| Cd | mg/kg | 3.6 |
| Cr | mg/kg | 9.8 |
| Hg | mg/kg | 1 |
1) Comfort; Due to the buffer coat layer, the floor is very comfortable to play on compared to the commonly used hard court solutions.
2) Safety; with its renown, durable silicon PU top finish with its well-balanced friction/sliding properties, the Comfort Court offers safety for the players at all time.
3) Seamless design; 70% of all floor failures start with a seam; so, no seams, no problems.
4) Closed surfaces; No dirt or bacteria can penetrate the floor; very easy to clean, very hygienic.
5) Multisport use; The surface makes it suitable to play all kinds of ball games, including tennis, basketball, handball, football or netball.
6) Every design is possible; Including using more colours in one floor or inserting a sports club logo in the floor.
7)Excellent UV resistance; This ensures a surface with the same appearance for years and years after installation.
8) Resistant; silicon PU Comfort Court is resistant against cigarette burns and many common chemicals.
9) Easy to repair; When the floor is damaged, it can be repaired seamlessly.
10) Asphalt or Concrete sub-base; Both are suitable for silicon PU Comfort Court. There are no limitations when you choose to install a silicon pu Comfort Court system.
3. Our goods delivery and package .
Product Tags:
|
|

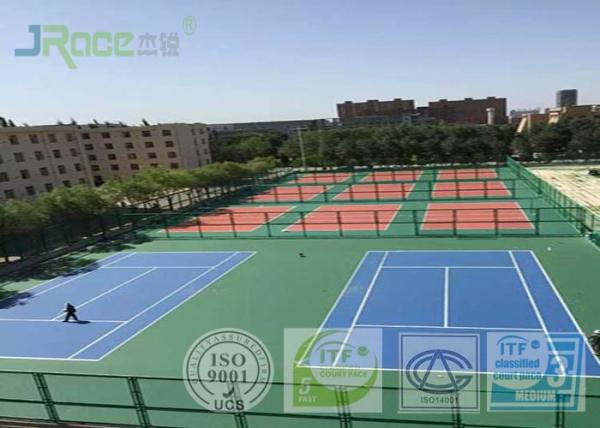

Seamless Acrylic Tennis Court Flooring With Stable Surfacing Materials Images
|
