IAAF Certificated 13mm Thickness Polyurethane Track Surface With Red Color
1.good quality athletics tracks surfaces
2.Thickness: 13-15mm running track
3.green product, factory price
4.IAAF Certification
Product Description
Appropriate elasticity, good shock absorption
Use environmentally-friendly materials, the specifications of the courts suitable for long-term trainning and competition.
Good anti-aging,wearing resistance and weather resistance.
Product Performance
| Material Name | Item | Group A | Group B |
| 1:4 PU primer | Color | transparent/light yellow color liquid | red color liquid |
| Viscosity(25℃,mpa s) | 500-1500 | 15000--22000 |
| Solid Content(%) | ≥99 | ≥99 |
| Mixture | Group A:GroupB:Hardener=1:4:0.04--0.08 |
| Pot life(25℃, min) | ≥60 |
| Surface dry time(25℃,h) | ≤8 |
| the whole system dry time(25℃,h) | ≤16 |
| Hardness JIS A | 45-50 |
| Tensile strength(Mpa) | ≥1.5 |
| Elongation at break | ≥150 |
| Flammability | Bf1-S |
| 1:2 PU top coat | Color | transparent/light yellow color liquid | red color liquid |
| Viscosity(25℃,mpa s) | 500-1500 | 15000--22000 |
| Solid Content(%) | ≥99 | ≥99 |
| Mixture | Group A:GroupB:Hardener=1:2:0--0.02 |
| Pot life(25℃, min) | ≥60 |
| Surface dry time(25℃,h) | ≤4 |
| the whole system dry time(25℃,h) | ≤8 |
| Hardness JIS A | 50-70 |
| Tensile strength(Mpa) | ≥3 |
| Elongation at break | ≥250 |
| Flammability | Bf1-S |

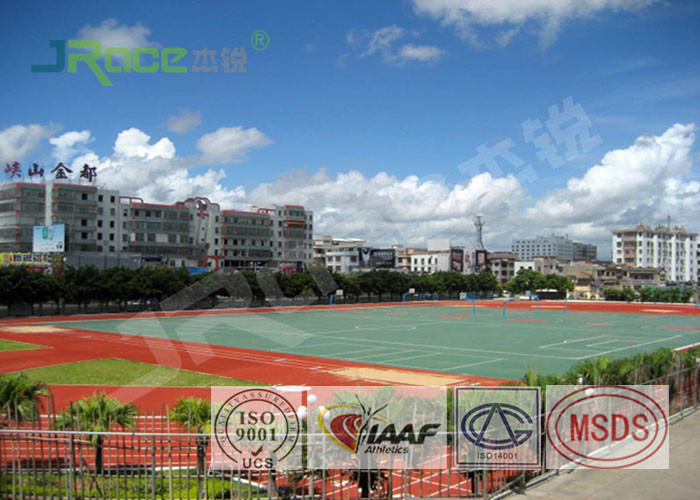

Part of cases
Product Package
| Item | Specification |
| No.103 Glue Binder | 20kg/200kg/barrel |
| EPDM | 25kg/bag |
| SBR Granule | 25kg/bag |
| Top Coat A | 15kg/200kg/barrel |
| Top Coat B | 30kg/300kg/barrel |
FAQ
Q:What is the Production time?
A:It is about 10 days.
Q:What are the options for the base construction of a running track.?
A:The ground is based on asphalt or concrete.
Q:What is the life Span for Running track?
A:The life span is about 10years.
Q:I am Interested in Synthetic track surface,what is the best choice?
A: Running track surfaces are produced on site with combinations of either latex or polyurethane binder and rubber. Best choice of surface will take into account use, performance requirepemtns, budget, and life cycle costs. Except for the full solid pour systems which vary in depth, The standard colors are trakc red and black although other colors are available at additional cost. Spray Coating is a porous system consisting of a paved base mat of binder and black rubber with 2 structural spray coats to pvovide wear and UV protection. Running track sandwich System with the paved base mat covered by top layer of solid-pour polyurethane and rubber.
